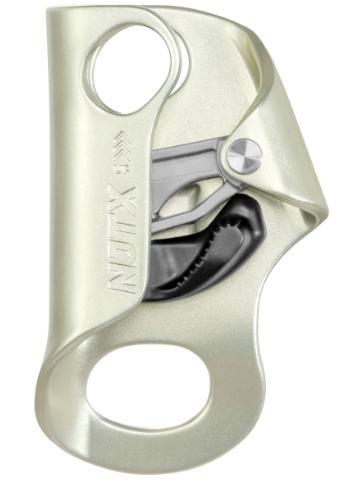

Ultralight aluminum alloy handled ascender

The Basic Rope Clamp is designed specifically for lightweight Single Rope Technique (SRT), fixed-line ascending, and progress capture in hauling systems. Eliminating the bulk of traditional handles, it weighs only about 87g. It features a multi-angled stainless steel cam with self-cleaning slots, ensuring a crisp, stable grip even in wet or muddy conditions. The ergonomically compact body is easy to handle , allowing for quick one-handed installation and removal at any point on the rope.

Key Features

• 87g Ultra-Lightweight Compact Body: The handle-less, minimalist design significantly reduces volume, ensuring it takes up minimal space on a harness or within a hauling system without interfering with rope travel.

• Multi-Angled Stainless Steel Self-Cleaning Cam: Low resistance when sliding upward; locks instantly upon loading. The self-cleaning grooves effectively clear mud, ice, and water without damaging the rope sheath.

• Quick One-Handed Operation: The smooth cam lever allows for rapid attachment or detachment at any position on the rope.

• Dual Attachment Points for Versatile Configuration:

  • Top Hole: Allows for connection of a carabiner to prevent rope disengagement, or for use in pulley systems for lightweight hauling and directional anchoring.

  • Large Bottom Hole: Spacious enough to accommodate both cow's tail lanyards and foot loop carabiners, ensuring balanced loading.

• High-Strength Engineering Standards: Working load up to 500kg, with a single-person rated load of 150kg, meeting XF494-2023 professional certification.

Specifications

• Main Materials: 7075 aviation-grade aluminum alloy, stainless steel cam, engineering plastic components

• Net Weight: Approx. 87g

• Working Load: 500 kg | Single-Person Rated Load: 150 kg

• Compatible Rope Diameter: 8 – 13 mm

• Certification Standard: XF494-2023

• Primary Uses: Fixed-rope ascending, progress capture in pulley systems, emergency self-rescue
