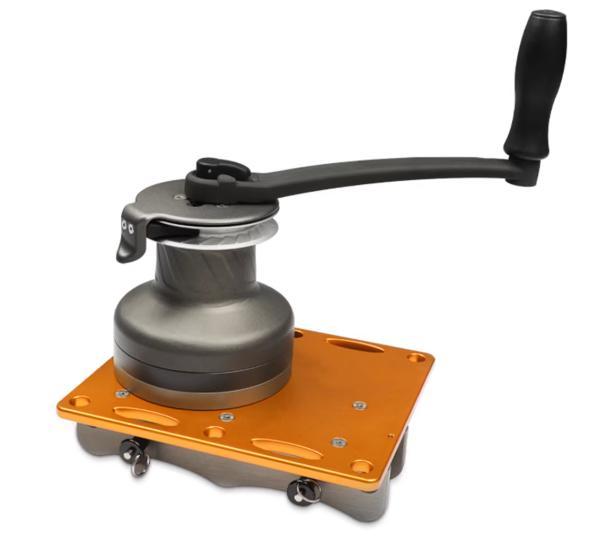

Professional High-Angle Rope Rescue Winch

A professional-grade Rescue & Hauling Winch designed for industrial high-altitude operations, confined space rescue, deep-well extraction, and heavy-load transport. It supports both manual handle operation and external power via an electric drill/hammer drill, significantly conserving rescuer energy and increasing lifting efficiency. The drum and rope-clamping structure feature precision-polished, rounded edges that are textile-friendly, effectively preventing surface abrasion on safety ropes over long-term use.

The system features two operating speeds, providing a mechanical advantage of up to 40:1. It comes standard with an integrated multi-purpose anchor plate and specialized locking pins, allowing for independent operation anchored directly to the ground or wall, as well as rapid, tool-free installation onto the uprights of a Rescue Tripod.

Key Features

• Manual / Electric Drill Dual Drive: Equipped with a standard long handle for precise manual control, and includes a dedicated drive adapter for hammer drills, enabling direct connection to cordless lithium-ion drills or hammer drills for high-speed automated lifting.

• Dual Operating Speeds (Max 40:1 Mechanical Advantage): Switch between high-speed gear (for rapid rope take-up) and low-speed/high-torque gear (for heavy-load lifting) as needed, allowing for the effortless lifting of heavy objects or two-person rescue loads with minimal physical exertion.

• Textile Rope Protection Design: The drum and rope guide surfaces are smooth and rounded with no sharp teeth, ensuring no damage to the rope sheath even during long-distance or high-frequency lifting.

• Flexible Mounting Anchor Plate and Specialized Pins: Features a built-in high-strength multi-hole anchor base, supplied with 2 specialized pins for rapid attachment to standard rescue tripod legs, while also supporting independent structural anchoring on-site.

• Industrial-Grade Safety Redundancy: Rated for a Working Load Limit (WLL) of 5kN and a Minimum Breaking Strength (MBS) of 25kN, specifically engineered for rigorous rescue conditions.

Specifications

• Working Load Limit (WLL): 5kN

• Minimum Breaking Strength (MBS): 25kN

• Mechanical Advantage: Dual-speed switching, up to 40:1

• Compatible Rope Diameter: 10 – 13 mm (various types of braided static safety ropes)

• Net Weight: Approx. 6.5kg (excluding packaging and accessories)

• Total Carry Weight: Approx. 10.6kg (including handle, anchor plate, pins, drive adapter, and protective case/bag)

• Standard Accessories List: Winch Unit ×1, Manual Handle ×1, Multi-purpose Anchor Plate ×1, Electric Drill Drive Adapter ×1, Specialized Quick-release Pins ×2

• Applicable Scenarios: Confined space (e.g., manholes, storage tanks) rescue, mountain and cave heavy-load extraction, integration with rescue tripods, and industrial high-altitude lifting and positioning
