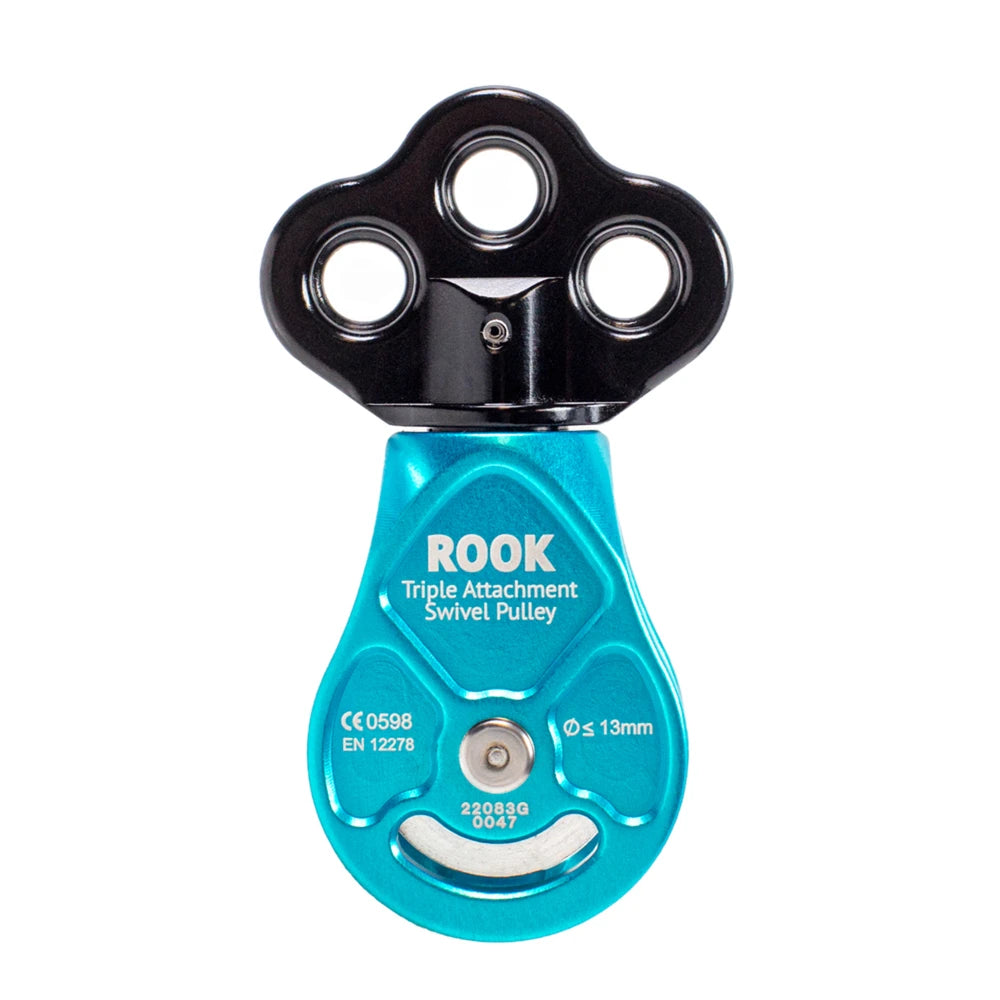

Notch Rook Triple Attachment Swivel Pulley - ST

The Notch Rook ST Triple-Attachment Swivel Pulley is specifically engineered for tree climbing harness rope bridges and complex rigging systems. It innovatively integrates a 360° swivel with three independent attachment points, effectively eliminating rope twisting and significantly enhancing maneuverability during three-dimensional movement within the canopy.

All three top attachment points feature integrated rubber O-ring spacers, which securely hold carabiners in place to prevent dangerous cross-loading caused by equipment flipping. The 53mm large-diameter aluminum sheave offers excellent rope efficiency and a breaking strength of 28kN. Certified to European CE EN 12278 standards, it is a premier choice for professional climbers looking to upgrade their rope bridge hubs.

Key Features

• Triple-Attachment Swivel: Features 3 independent attachment points combined with a smooth 360° swivel to completely prevent rope bridge twisting and tangling.

• Rubber O-ring Anti-Flip Design: Integrated rubber positioning spacers lock connectors in the correct orientation, preventing carabiners from cross-loading.

• 28kN High Breaking Strength: Offers an overall Minimum Breaking Strength (MBS) of 28kN (2 x 14kN), providing high-spec safety margins.

• 53mm Large Sheave for High Efficiency: A 2.1-inch (53mm) large-diameter sheave bearing reduces friction for exceptionally smooth movement while climbing.

• CE Safety Certified: Meets stringent CE EN 12278 pulley standards, ensuring quality and safety compliance.

Technical Specifications

• Certification: CE EN 12278:2007

• Minimum Breaking Strength (MBS): 28 kN (2 x 14 kN)

• Maximum Rope Diameter: 13 mm

• Sheave Diameter: 53 mm (2.1 inches)

• Dimensions: Height 4.58 inches (116mm) | Width 2.5 inches (63.5mm)

• Weight: Approx. 575 g (20 oz)

• Special Features: Rubber O-ring positioning spacers

• Applications: Tree climbing harness rope bridge hubs, MRS (Moving Rope Systems), multi-rigging guidance

• Brand: Notch
